Brand: ROYAL
Product Code: RR-4G24
Weight: 830.00lb
Dimensions: 36.00in x 48.00in x 56.50in
Call for Price: 713-690-1231

Add to Compare

Download PDF

Overview:

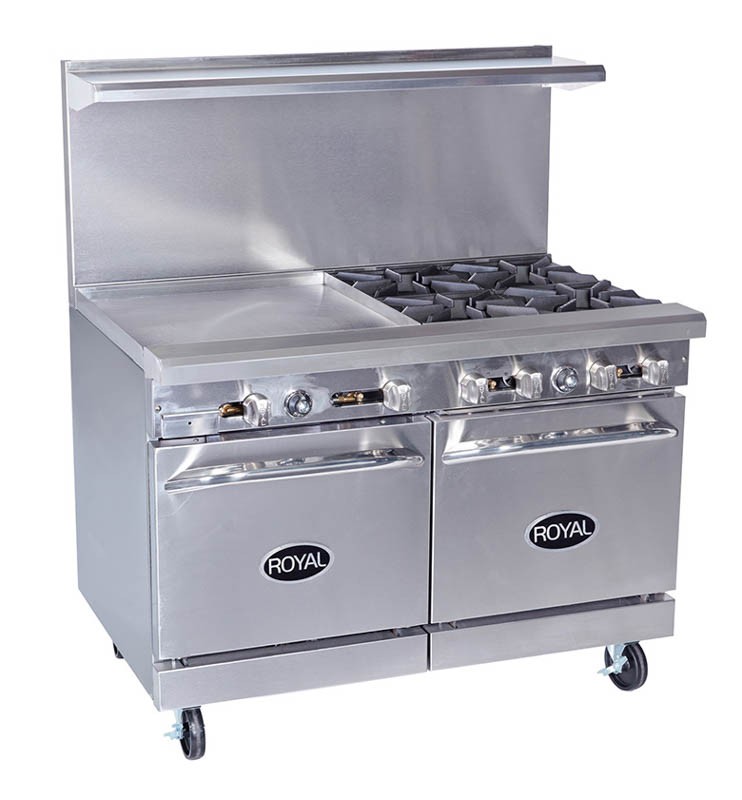

48" Range with (4) Open Burners, 24″ W Griddle

BTU 214,000



Standard Features

  • Stainless steel front, sides, landing ledge, back guard, shelf, valve cover and kick plate

Standard Oven

  • Porcelain finish on contact surfaces
  • Standing pilot with 100% safety shut down
  • “U” Stainless Steel Burner rate at 35,000 BTU/hr. (26″ oven), 27,000 BTU/hr. (20″ oven)

Open Burners

  • 2 piece lift off cast iron burner rated at 30,000 BTU/hr.
  • 12″ x 12″ cast iron grate with double angled slope for efficient heating

Griddle

  • Highly polished 3/4” thick griddle plate with 3” wide grease trough
  • 20,000 BTU/hr. steel burner every 12”

Convection Oven

  • 2 speed (1725/1140 rpm) 1/2 HP motor. 120V, 50-60 Hz, single phase, 8 amps
  • 30,000 BTU/hr. “U” Stainless Steel burner with automatic ignition
  • 3 heavy duty chrome racks with 5 position adjustment
  • Thermostat adjustable from 150° to 500° F

Radiant Broiler

  • Stainless steel burners rated at 15,000 BTU/hr. located every 6”
  • Heavy cast iron radiants
  • Reversible cast iron top grates

Download Specifications



_x000D_

Royal Range of California, Inc. (hereafter referred to as Royal) warranty applies to all equipment that has been unaltered, properly installed and maintained in accordance with national and local codes and in accordance with the Royal installation manuals.

_x000D_

Royal products are warranted to the original purchaser to be free from defects in material and workmanship under normal use and service for a period of two (2) years** from the date of original installation or 30 months from date of manufacture.

_x000D_

Parts wear is not considered a defect. Cast iron parts are warranted for 90 days.

_x000D_

This warranty does not apply to equipment damaged, altered or abused, accidentally or intentionally modified by unqualified service personnel or with missing or altered serial nameplates.

_x000D_

Fryers: Two (2) year parts and labor including all fryer filter systems except for the model RFT-50** single fryer which is one (1) year parts and labor. Limited warranty on the stainless-steel fry tank: five (5) years, prorated. The RHEF series fryers stainless steel fry tank: Ten (10) years, prorated

_x000D_

Royal agrees to repair or replace defective parts (with normal ground shipping) due to flaws in material or workmanship during the warranty period. Labor to repair or replace defective parts shall be warranted when performed by an authorized Royal service agency.

_x000D_

Travel over 50 miles, holiday or overtime labor charges are not covered.

_x000D_

Proper installation, initial check out, air shutter adjustments, or normal maintenance such as lubrication, adjustment or calibration of controls is the responsibility of the dealer, owner-user or installing contractor and is not covered by this warranty.

_x000D_

PRICES: All prices are subject to change without notice. Prices do not include sales or any other local state tax.

_x000D_

SHIPMENTS: Shipments must be inspected promptly upon receipt. No claims for damaged merchandise or missing parts or other errors will be recognized unless written notice thereof is given to Royal within 30 days after the shipping date.

_x000D_

NOTE: Royal Range reserves the right without prior notice to make changes and revisions in product specifications, design and materials, which in the opinion of the company will provide greater efficiency, performance, and durability.

_x000D_

RETURNED GOODS: Returned goods are subject to a 20% re-stocking charge and the cost of reconditioning. Prior authorization by Royal must be granted and returned goods must be shipped freight pre-paid.

_x000D_

Custom units including fryer filter systems built to buyers’ specifications may not be returned or cancelled.

_x000D_



Delivery:

_x000D_

Within Greater Houston Area $75 Delivery (Curbing Delivery)

_x000D_

All other Location within Continenal USA, Shipping Via Freight: Call us 713 690 1231 for a quote.
